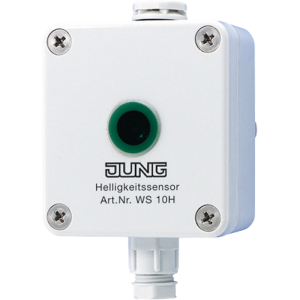

Датчик освещённости, WS 10 H

Рейтинг:
Артикул: WS10H
Есть на складе
52 537,00 руб
+

Сообщить, когда станет дешевле

напряжение питания: 24 В DC
диапазон измерения: 0 - 60 000 люкс, линейная характеристика

The brightness sensor is used for the measuring and evaluation of the brightness.
The dawn sensor is used for the measuring and evaluation of the brightness (dawn/dusk).
The temperature sensor is used for the measuring and evaluation of the temperature.
The value measured by the sensor is transmitted to an analogue output signal of 0 ... 10 V by the electronics.
Connections:
Plastic housing with PG7 thread + screw and pressure / moisture compensation (recommended cable 3 x 0.25 mm2)
+UB: operating voltage 24 V DC
GND: corresponding ground
OUT: output 0 ... 10 V
  • screw terminals
  • 0 ... 10 V DC (into a load of at least 1 kΩ. short-circuit protected)
  • макс. 100 м
  • -30 ... +70 °C
  • IP 65
  • 58 x 35 x 64 мм
  • 2.5 мм²
  • through screwed conduit entry PG 7
  • optional
  • 3 x 0.25 мм²
